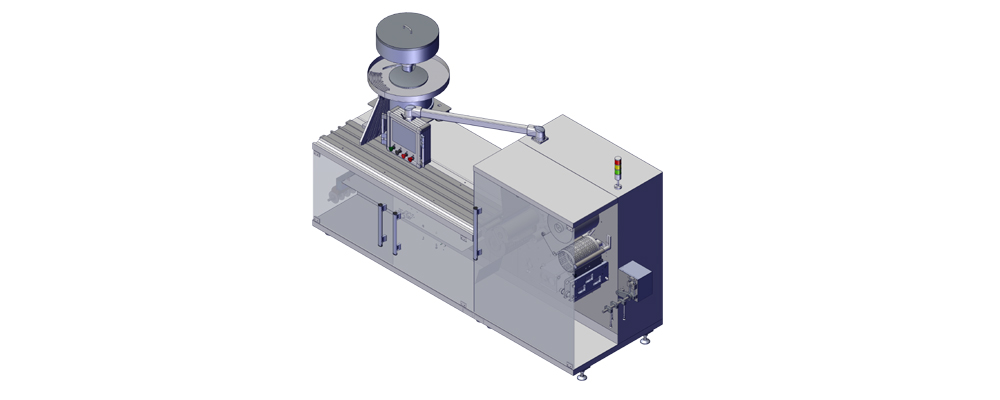

DPH300高速泡罩包裝機
DPH300 HIGH SPEED BLISTER PACKING MACHINE

  • 特點
    全伺服驅動、智能控制;
    板式正壓吹塑成型、輥式熱封、包裝效率高;
    加熱溫度PID智能控制,溫度控制準確,節省電能;
    可與通用上料機、掉頭上料機、圓盤上料機配套使用;
    運動控制器控制,電子凸輪驅動,無傳動噪音,調整范圍廣泛;
    無鏈條傳動,避免潤滑造成的污染,降低維修人員的勞動強度;
    光電踉蹤、浮動對標;
    自動打印批號,清晰美觀;
    主要元器件均采用進口;
    整機采用全封閉方式,符合GMP要求。
    Features
    Full servo drive, intelligent control.
    Plate type positive pressure blow molding, roller heat sealing, high packaging efficiency.
    Heating temperature PID intelligent control, accurate temperature control and energy saving.
    It can be used with general feeder, U-turn feeder and disc feeder.
    Motion controller control, electronic cam drive, no transmission noise, wide adjustment range.
    No chain drive, avoid pollution caused by lubrication, reduce labor intensity of maintenance personnel.
    Photoelectric tracking, floating alignment.
    Automatically print batch numbers, clear and beautiful.
    The main components are imported.
    The whole machine adopts a fully enclosed method, which meets the requirements of GMP.

  • 適用范圍
    各種規格的膠襄、素片、糖衣片、膠丸及異型片,巧克力豆、口香糖等固態物料。
    Application
    Various specifications of capsules, plain tablets, sugar-coated tablets, capsules and special-shaped tablets, chocolate beans, chewing gum and other solid materials.

  • 技術參數 Specifications

成型最大面積Max forming area

210×300mm

沖裁頻率punching frequency

20-180次/分鐘

機器總功率Power 20kW
電壓Voltage 380V/50Hz
耗氣量Air consumption?????? 300L/分鐘
耗水量Water consumption 6L/分鐘
電壓 Voltage 380V/50Hz
外形尺寸(長×寬×高)S ize (L×W×H)? 3300×1050×2020mm
重量 Weight 2000kg
